Professional Chain Link Fence Making Machine / Diamond Mesh Fencing Machine 2 - 4M

Brand Name : JG

Model Number : D2-4

Certification : CE,ISO9001

Place of Origin : Hebei,China

MOQ : 1 set

Price : 9000US$

Payment Terms : T/T, L/C, Western Union

Supply Ability : 20 sets per month

Delivery Time : 20 days

Packaging Details : nude packing

Electronics : Schneider origin

Controller : Japan PLC controller

Motor : Top servo motor+planetary reducer

After sales service : Engineers available to service overseas

Guarantee time : 1 year

Mesh width : 2-4M

Contact Now

Full-automatic Chain Link Fence Machine / Dimaond Mesh Machine

Description

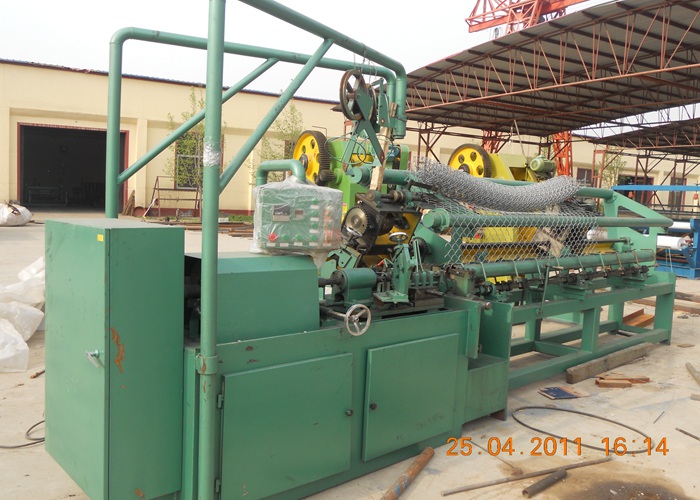

Chain link machine for manufacturing chain link fences of different sizes. The wire is taken in from the payoff stand and passed through the dies where the DIAMOND SIZE takes place. Different gap sizes. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place.The chain link is automatically wound to form rolls when the desired length is manufactured.

Parameters of ZWJ-2000-S Full-automatic Chain Link Fence Machine:

2m Wide Machine (Hydraulic)

Production Capacity 60-80(Square meter/hour)
Steel Wire Diameter ∮2.5-∮4.0 Spinning Wire Number: Twin-wire
(Description: Steel wire standard according with:GB3081-82
YB544-65 Steel Wire Material:B1F-B3F)
Mesh 50x50-100x100(mm)
Breadth 600-2000(mm)
Power 3.0KW for One Machine
4.0KW for One Machine
0.12KW for One Machine
Overall Dimensions LXWXH4200mm×4000mm×2500mm
ZWJ-4000-S Full-automatic Chain Link Fence Machine
Parameters:

Production Capacity

 80-120(m2/hour)
Steel Wire Diameter ∮2.0-∮4.0 Spinning Wire Number: Twin-wire
(Description: Steel wire standard according with:GB3081-82
YB544-65 Steel Wire Material:B1F-B3F)
Mesh 30X30-108X108(mm)
Breadth 600-4000(mm)
Power 3.0KW1set 4.0KW1 set 0.12KW 1set
Overall Dimensions L*W*H6500mm×4500mm×2500mm

Our factory also can produce 3m full-automatic chain link fence machine with 2m breadth according to customer demands.

Features and Application:

Our full-automatic diamond mesh machine adopts German technology double silk weaving forming principle, so it has high production efficiency and the made mesh has reliable quality. The machine has reasonable design, and adopts microprocessor control and mechatronics to automatically finish spinning, shearing, wire rolling, overlock stitch and other processes. The made silk screen is used for expressway, ball court, park, warehouse, zoo fence, construction site fence, confined poultry, side slope greening, piping insulation, etc.
